Instrument Index Reconciliation
P&ID tags matched to instrument register
P-005 / I&C / EPC QUALITY CONTROL
Instrumentation
Document Consistency Review
A structured I&C document review example: reconcile Instrument Index, I/O List, source P&IDs and vendor information, then produce an actionable technical query register.
Instrument IndexI/O reconciliationP&ID tag tracingVendor reviewTechnical queries

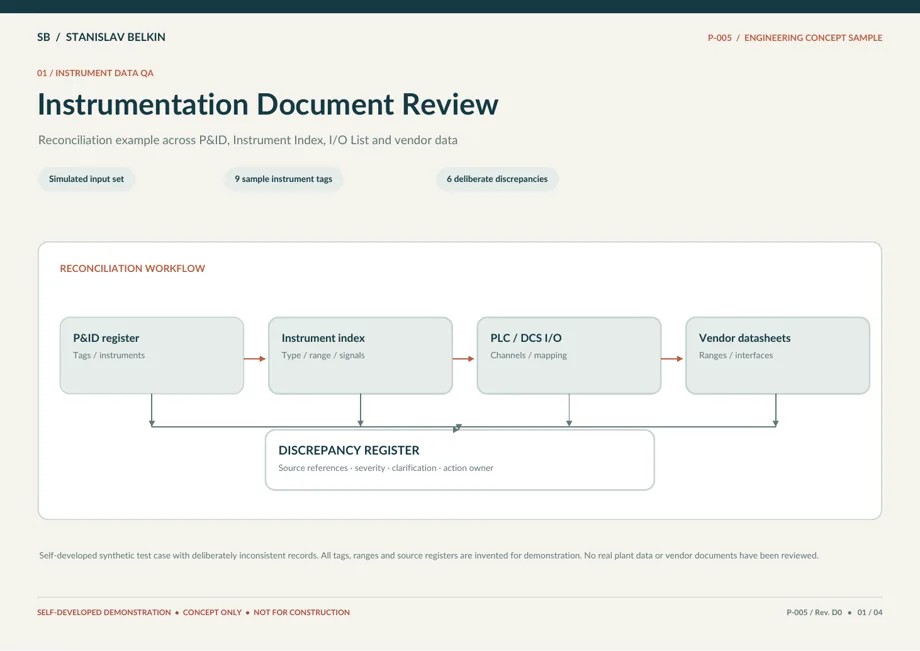

DEMONSTRATION PDF AVAILABLE · REV. D0
P-005 · Instrumentation Document Review
4-page synthetic QA exercise: instrument tag reconciliation, discrepancy log and technical queries.
Concept only: not an EPLAN export, not a verified manufacturing or construction drawing.
01 / ENGINEERING BOUNDARY
A controlled
sample scope.
Synthetic EPC/OEM data set with deliberately introduced inconsistencies: a controlled educational QC exercise, not a real vendor package or a claim of completed client work.
Demonstration assumptions
- 50–100 synthetic instrument tags distributed across example P&IDs, I/O and datasheet extracts.
- Seeded discrepancies in tag references, engineering units, signal types, ranges and interface ownership.
- Define source priority and review rules; clearly distinguish factual errors from questions needing client resolution.
- Produce reconciliation sheets, consolidated technical queries and a QC close-out checklist.
Technical references: Project I&C specification; IEC 61082 / IEC 81346 for document conventions where applicable; IEC 61511 only for documented SIS interfaces if supplied by responsible process safety engineers. No SIL design, validation or regulated sign-off is claimed.
02 / DOCUMENT REGISTER
Defined outputs.
Traceable revisions.
Planned example deliverables and formats. Status changes only once real files have been created and technically reviewed.
| Document No. | Engineering deliverable | Proposed format | Status |
|---|---|---|---|
| P005-BS-001 | Document receipt and source-data register | XLSX | Planned |
| P005-IC-001 | Instrument Index with P&ID cross-reference | XLSX | Planned |
| P005-IC-002 | I/O List cross-check and channel mapping | XLSX | Planned |
| P005-IC-003 | Instrument and package interface matrix | XLSX | Planned |
| P005-IC-004 | Vendor datasheet technical review record | XLSX | Planned |
| P005-QA-001 | Cross-document discrepancy register | XLSX | Planned |
| P005-QA-002 | Technical queries and proposed resolutions | XLSX / PDF | Planned |
| P005-QA-003 | Traceability check matrix | XLSX | Planned |
| P005-QA-004 | Review summary and open-point log | Planned | |
| P005-QA-005 | Document revision & review close-out register | XLSX | Planned |
03 / ENGINEERING PROOF GALLERY
From registers
to real evidence.
Reserved spaces are intentionally empty. We will show actual exported sheets or QC registers after their engineering review, not generic illustrations labelled as finished work.
Preview reservedI/O List Cross-Check
Verified export will appear here.
Verified export will appear here.
PREVIEW SLOTNOT YET ISSUED
IC-002 · IN PREPARATION
I/O List Cross-Check
Signal type and channel mapping
Preview reservedDiscrepancy Register
Verified export will appear here.
Verified export will appear here.
PREVIEW SLOTNOT YET ISSUED
QA-001 · IN PREPARATION
Discrepancy Register
Severity, evidence and reviewer comment
Preview reservedTechnical Query Register
Verified export will appear here.
Verified export will appear here.
PREVIEW SLOTNOT YET ISSUED
QA-002 · IN PREPARATION
Technical Query Register
Open decisions for EPC and vendor
Preview reservedVendor Datasheet Review
Verified export will appear here.
Verified export will appear here.
PREVIEW SLOTNOT YET ISSUED
IC-004 · IN PREPARATION
Vendor Datasheet Review
Parameters and scope interfaces
Preview reservedQC Close-Out Summary
Verified export will appear here.
Verified export will appear here.
PREVIEW SLOTNOT YET ISSUED
QA-003 · IN PREPARATION
QC Close-Out Summary
Resolved issues versus outstanding actions
